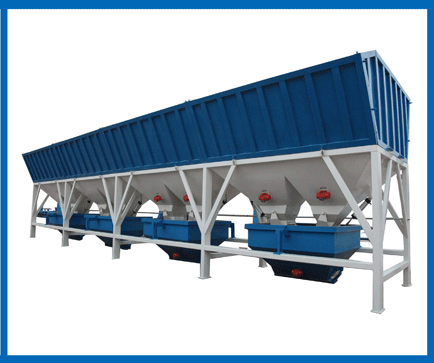

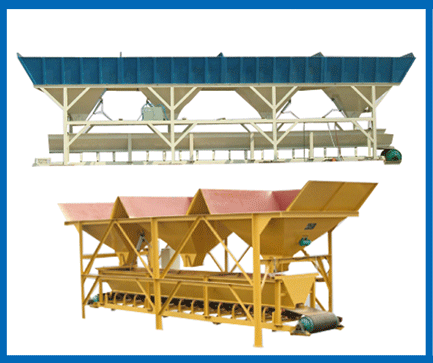

CONCRETE BATCHING PLANT


Technical Parameter of PL/PLQ Series Batching Machine

ITEM
UNIT

MODEL AND TECHNICAL PARAMETER

PL800/

PLQ800

Two-bin

PL800/

PLQ800

Three-bin

PL800/

PLQ800

Four-bin

PL1200/

PLQ1200

Three-bin

PL1200/

PLQ1200

Four-bin

PL1600/

PLQ1600

Three-bin

PL1600/

PLQ1600

Four-bin

PL2400/

PLQ2400

Three-bin

PL2400/

PLQ2400

Four-bin

PL3200/

PLQ3200

Four-bin

Production Capacity
M3/H
40
40
40
40
40
50
50
75
75
100
Weighing Bucket Capacity
L
800
800
800
1200
1200
1600
1600
2400
2400
3200

Quantity and Capacity of

Aggregate Batching Bin

NOS.

¡ÁM3

2¡Á2.5
3¡Á4
4¡Á4
3¡Á4
4¡Á4
3¡Á6
4¡Á6
3¡Á8
4¡Á8
4¡Á15

Weighing Scope of

Electronic Sacles

KG
¡Ü1200
¡Ü1200
¡Ü1200
¡Ü1500
¡Ü1500
¡Ü2500
¡Ü2500
¡Ü3000
¡Ü3000
¡Ü1500

Weighing Accuracy of

Electronic Sacles

%
¡À2
¡À2
¡À2
¡À2
¡À2
¡À2
¡À2
¡À2
¡À2
¡À2

Max Diameter of

Aggregate(gravel/cobble

/crushed stone)

MM
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
Belt Conveying speed
M/S
1
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
2
Total Power
KW
4.03
4.06
4.18
7
10.5
8.5
10.5
10.5
14
14
Overall Dimension
L
MM
6000
7945
11130
9720
12370
9690
12890
9690
12890
14000
W
MM
2300
2300
2100
2115
2115
2750
2750
2750
2750
3285
H
MM
2850
2850
2800
2900
2900
3500
3500
3500
3500
3650
Total Weight
KG
2380
4000
4550
4040
5685
5460
6845
5720
7240
13000

Remarks£º

    Our Company reserves the right to update and improve our products without any notice.Buyers should refer to actual parameters offered by our dealers.

Main Features of PL/PLQ Series Batching Machine£º

    The PL/PLQ series batchig machine can automatically complete batching procedures of 2 to 4 kinds of materials such as sand, stone, cement, fly ash/fine coal ash and slay and so on according to users' designed concrete mix ratios. It has advantages of high batching accuracy, strong applicability, free adjustablity of mix ratio, simple operation and easy maintenance, ect. with separative or accumulative weighing of the electronic scales. It is the best concrete prodcution equipment because it can bring the advantages of the two-shaft compulsory mixer of the JS/JSQ concrete mixer better when the two are composed of a complete set of concrete batching plant, which can greatly improve production efficiency and the quality of concrete.
