CONCRETE BATCHING PLANT


Technical Parameter of JS/JSQ Series Concrete Mixer

ITEM
UNIT

MODEL AND TECHNICAL PARAMETER

JS500/ JSQ500

JS500C/ JSQ500C

JS750B/ JSQ750B

JS750E/ JSQ750E

JS1000/ JSQ1000

JS1500/ JSQ1500

JS2000/ JSQ2000

JS3000/ JSQ3000
Rated Production Capacity
M3/H
25
25
40
40
50
75
100
150
Discharging Height
M
1.6
3.8
1.6
3.8
3.8
3.8
3.8
4.1
Output Capacity
L
500
500
750
750
1000
1500
2000
3000
Feeding Capacity
L
800
800
1200
1200
1600
2400
3200
4800
Mixing Time
S
35-45
35-45
35-45
35-45
35-45
35-45
35-45
35-45

Average Hoisting Speed

of hopper

M/MIN
18
18
19.2
19.2
27
26.5



Max Diameter of Aggregate

(gravel/cobble/crushed stone)

MM
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
¡Ü60/80
Mixing Blade Rotational Speed
R/MIN
35
35
30.5
30.5
25.5
25.5
24.3
24.3
Quantity
NOS.
2¡Á7
2¡Á7
2¡Á7
2¡Á7
2¡Á8
2¡Á9
2¡Á8
2¡Á9
Mixing Motor Type

Y180M-4
Y180M-4
Y220L-4
Y220L-4
Y200L-6
Y225M-6
Y2-225S-4
Y2-250M-4
Power
KW
18.5
18.5
30
30
2x18.5
2x30
2x37
2x55
Hoisting Motor Type

YEZ132S-4-B5
YEZ132S-4-B5
YEZ132M-4-B5
YEZ132S-4-B5
YEZ180M-6
YEZ200L2-6


Power
KW
5.5
5.5
7.5
7.5
18.5
22


Water Pump Type

65DWB35-5
65DWB35-5
65DWB35-5
65DWB35-5
IS80-65-125
IS80-65-125


Power
KW
1.1
1.1
1.1
1.1
5.5
5.5


Overall Dimension L
MM
4450
10800
4950
4950
10500
10500
3168
4020
W
MM
3000
3700
3635
3635
4100
4100
2320
2600
H
MM
4600
7425
6265
8330
8800
9295
2196
1695
Total Weight
KG
4100
6500
6500
8500
11450
12210
7200
10000
Total Power
KW
25.75
26.95
39.7
41.6
63.2
98.7



Remarks:

     Our Company reserves the right to update and improve our products without any notice.Buyers should refer to actual parameters offered by our dealers.

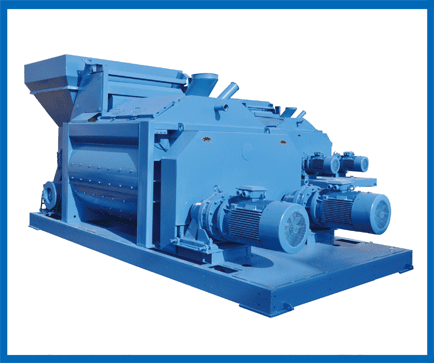

    The JS/JSQ series concrete mixer adopts mixing arms with twin-horizontal-shaft arrangement which can mix concrete forcely when relatively rotary agitating. It has the advantages of uniform mixing quality, strong mixng capacity, high production efficiency, easy operation, low energe consumption, low noise, long life and convenient maintenence. It can be used alone and also as a m ixer of a concrete batching plant. This concrete mixer is applicable to various construciton sites and small and medium-sized architectural prefabricated factories for produciton of rigid, semi-rigid and plastic concrete and concrete of various mix ratios.
