| CONCRETE BATCHING PLANT |
|
|
 |

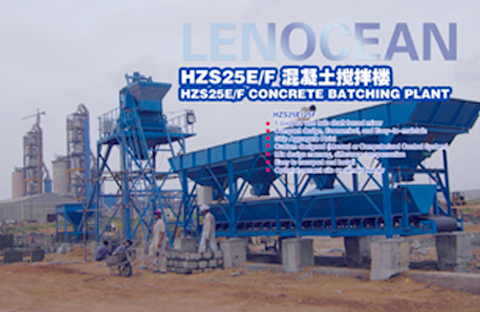

| HZS25E CONCRETE BATCHING PLANT |
JS500
Mixer |
Item |
Unit |
Technical Parameters |
Discharge Capacity |
L |
500 |
Charge Capacity |
L |
800 |
Mixing Time |
s |
35-45 |
Rated Output |
m3/hour |
25 |
Motor Power |
kw |
18.5 |
Hoisting Power |
kw |
5.5 |
Pump Power |
kw |
2.2 |
Max diameter of aggregates gravel/crushed stone |
mm |
60/80 |
Overall Dimension |
mm |
10143กม2612กม7426 |
Total Weight |
kg |
4000 |
PL800
Four Batching |
Storage Bin Capacity |
m3 |
4*4 |
Weigher Capacity |
L |
800 |
Motor Power |
kw |
4 |
Vibrating Motor |
kw |
0.3 |
Overall Dimension |
mm |
11130กม2100กม2800 |
Total Weight |
kg |
4000 |
Screw Conveyor |
Type |
|
LSJ20 |
Conveyor Length |
mm |
11250 |
Screw Rotating Speed |
r/min |
225 |
Diameter |
mm |
ฆี219 |
Working Angle |
400 |
Conveying Ability |
t/h |
20 |
Motor Type |
Y132M-4/B5 |
Motor power |
kw |
7.5 |
Overall Dimension |
mm |
11250กม1202กม350 |
Total Weight |
kg |
|
Cement Feeder |
Overall Dimension |
m |
1.96กม1.96กม2 |
Cement Weigher |
Capacity |
L |
|
Overall Dimension |
mm |
1660กม870กม1080 |
Total weight |
kg |
|
Compressor |
Type |
Discharging Volume |
m3/min |
0.17 |
Rated Pressure |
mpa |
0.8 |
Motor Power |
kw |
3 |
|
|
