| Construction Machinery |
|
 |

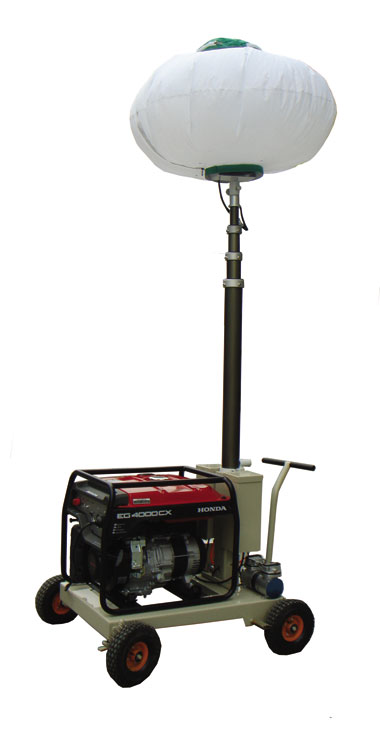

Glare-free Balloon Light Tower
|
Model |
AL1100Q |
MAST |
Max.Extension of Mast |
4.2m |
Work Mode |
Pneumatic |
Rasing/Lowing Mast |
Pneumalic Control |
| Stages |
3 |
Lamp |
|
Tatal Power of Lamps |
1000W |
Type of Lamp |
Metal Halide Lamp ≤20° |
Ligh Capacity |
110000LM |
Frequency |
50/60Hz |
Lifetime of Lamp |
2000h |
Woeking Temperature |
85°C |
Connection Protection Index |
IP54 |
Light Coverage |
3500m2 |
Generator |
Can Be Selected |
Brand |
HONDA |
Rated Power |
2.0kW |
Standby Power |
2.2Kw |
Voltage |
220-240V |
Engine Speed 50Hz |
3000rpm |
Altemator |
EX2500 |
Fuel Tank Capacity |
26L |
Working Hcurs |
13.5h |
Control Systerm |
Digital Control Pannel |
Power Outlet |
3anual |
Trailer |
|
Stent Material |
Steel Structures |
Anti-wind Caoacity |
≤6° |
Brakes |
Footbrake |
Dimension Weight |
|
Retracted Diimentsion (mm) |
1000×850×800 |
Container Load |
(20FT/40FT)20/40(At least) |
| Net Weight |
100Kg |
|
Glare-free Balloon Light Tower
|
Model |
AL1200Q |
MAST |
Max.Extension of Mast |
6m |
Work Mode |
Pneumatic |
Rasing/Lowing Mast |
Pneumalic Control |
| Stages |
3-4 |
Lamp |
|
Tatal Power of Lamps |
2×1000W |
Type of Lamp |
Metal Halide Lamp |
Ligh Capacity |
220000LM |
Frequency |
50/60Hz |
Lifetime of Lamp |
2000h |
Woeking Temperature |
85°C |
Connection Protection Index |
IP54 |
Light Coverage |
6000m2 |
Generator |
Can Be Selected |
Brand |
HONDA |
Rated Power |
3.2kW |
Standby Power |
3.6Kw |
Voltage |
220-240V |
Engine Speed 50Hz |
3000rpm |
Altemator |
EC4000 |
Fuel Tank Capacity |
26L |
Working Hcurs |
16h |
Control Systerm |
Digital Control Pannel |
Power Outlet |
3anual |
Trailer |
|
Stent Material |
Steel Structures |
Anti-wind Caoacity |
≤6° |
Brakes |
Footbrake |
Dimension Weight |
|
Retracted Diimentsion (mm) |
1000×850×800 |
Container Load |
(20FT/40FT)15/30(At least) |
| Net Weight |
200Kg |
|
|
