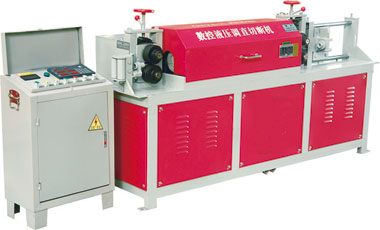

Reinforcing Bar Straightening and Cutting Machine
Item		GTY4-12
Rated Voltage		380V
Rated Frequency		50Hz
Rated Speed		1440r/min
Straightening Scope		φ4-φ12mm(Round Steel)
Straightening Scope		φ6-φ12mm(Reinforced Bar)
Straightening Speed		45m/min
Auto Cutting Length	Shortest	0.3m
Auto Cutting Length	Longest	99.99m
Cutting Length Error		≤20mm
Electromotor for Straightening	Model	Y132M-4
	Electromotor Power	7.5Kw
	Rated Voltage	380V
	Rated Frequency	50Hz
	Rated Speed	1440r/min
Hydraulic Pressure Electromotor for Cutting	Model	Y132S-4
	Electromotor Power	5.5Kw
	Rated Voltage	380V
	Rated Frequency	50Hz
	Rated Speed	1440r/min
